Dimensionality reduction algorithms (PCA/ICA) can be run through the
singleCellTK toolkit using both interactive shiny
application and R console. For the interactive analysis, the toolkit
offers a streamlined workflow to both compute metrics for dimensionality
reduction and then visualize the results using any of the available
interactive plots. For the console analysis, the toolkit offers a single
wrapper function runDimReduce()
to compute metrics for any
of the integrated algorithms and multiple methods to visualize the
computed results.
Methods available with the toolkit include PCA
from
scater
[1] package and
PCA
& ICA
from Seurat
[[2]][3][[4]][5] package.
Visualization options available for users include 2D Component Plot,

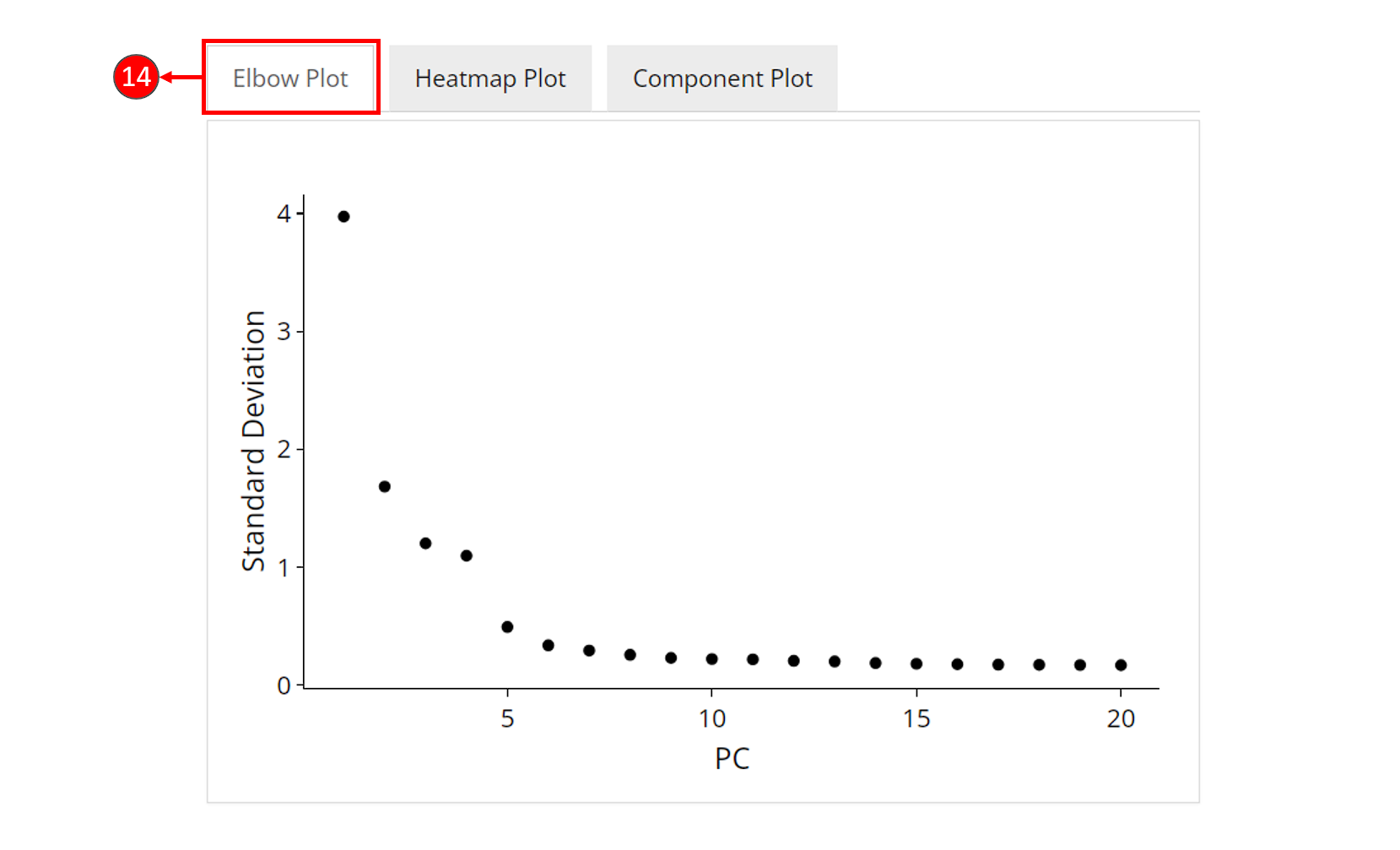

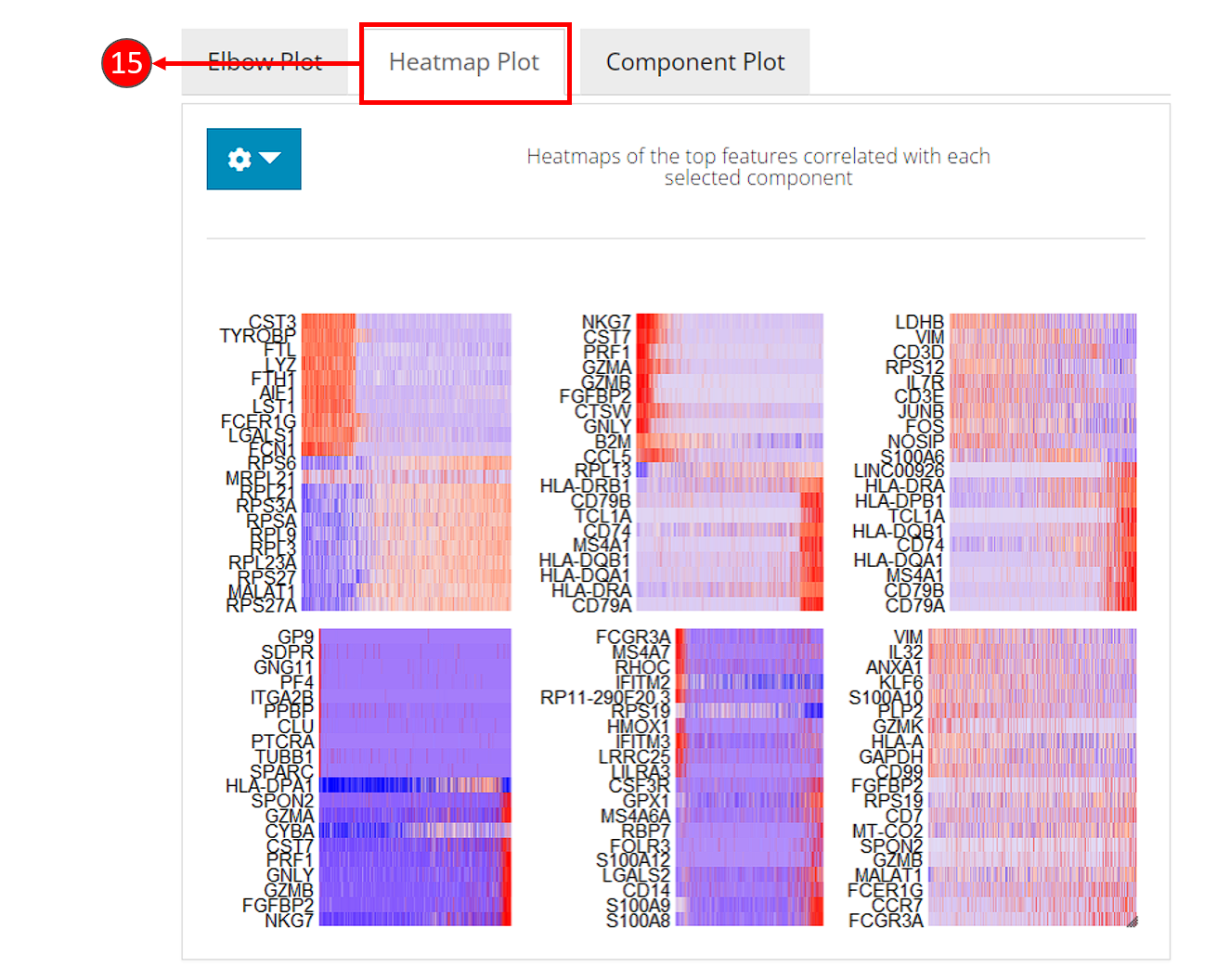

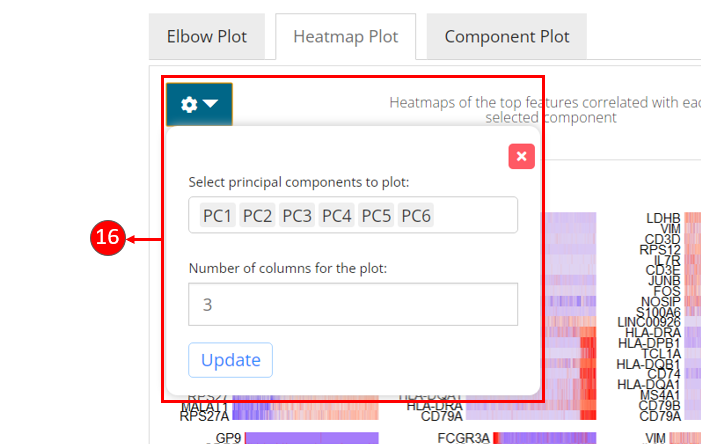

Elbow Plot, JackStraw Plot and Heatmap. A complete list of supported
visualization options against each method are specified at the bottom of
the tabs below.
To view detailed instructions on how to use these methods, please select ‘Interactive Analysis’, from the tabs below, for performing dimension reduction in shiny application or ‘Console Analysis’ for using these methods in R console:

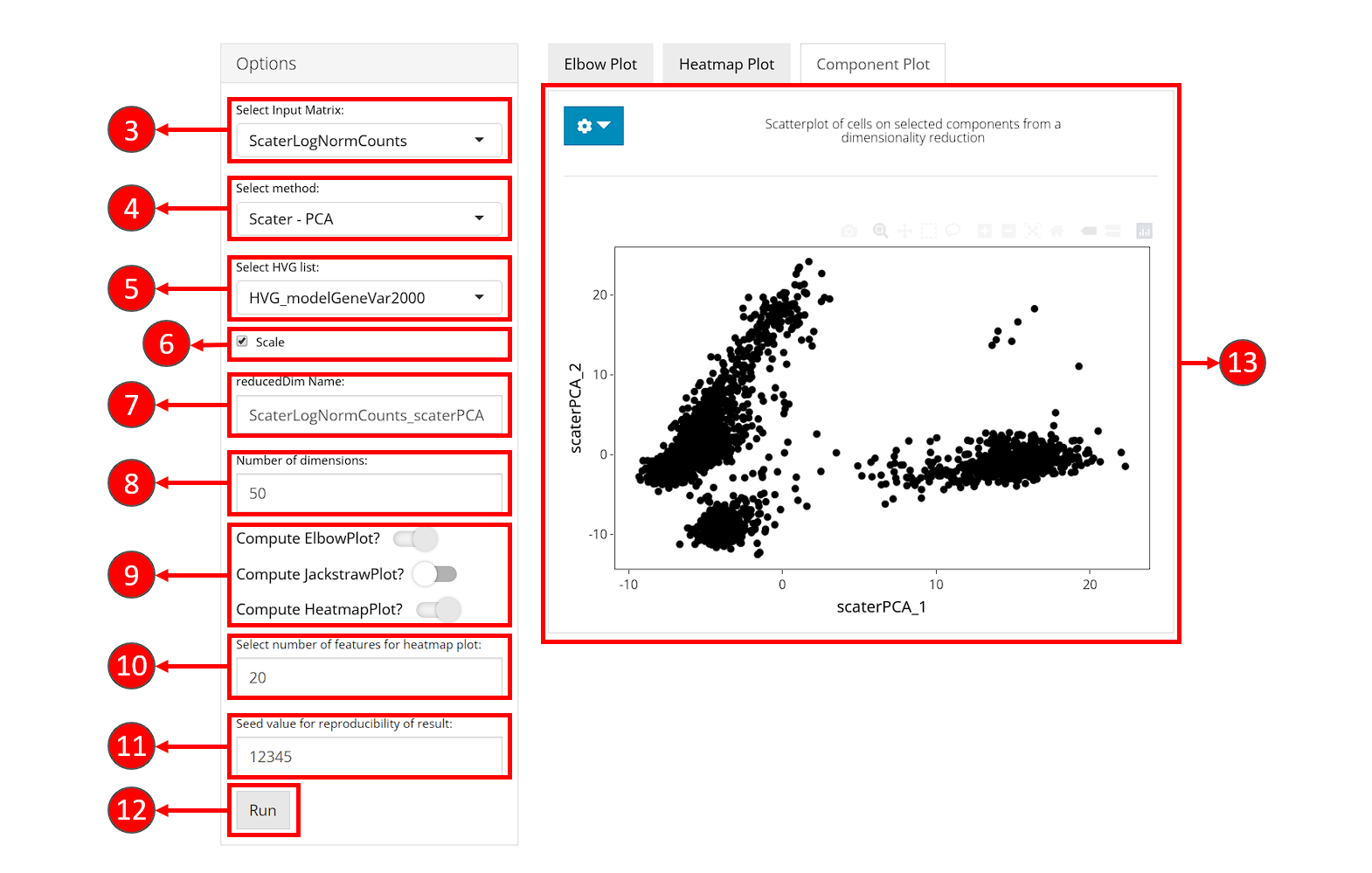

In general, the UI offers options for selection of data items and choice of parameters on the left side, and a visualization panel on the right side of the interface. A detailed workflow guide to run and visualize dimension reduction (DR) is described below:
50
.Method | 2-Dimensional Component Plot | Elbow Plot | JackStraw Plot | Heatmap Plot |
---|---|---|---|---|
PCA | yes | yes | yes | yes |
ICA | yes | no | no | yes |
Here we show how to perform dimension reduction with the generic
function runDimReduce()
, together with the method to
visualize and explore the results.
1. Compute dimensionality reduction
sce <- runDimReduce(inSCE = sce, method = "scaterPCA", useAssay = "logcounts",
scale = TRUE, useFeatureSubset = "HVG_modelGeneVar2000",
nComponents = 50, reducedDimName = "PCA")
The generic function runDimReduce()
allows
"scaterPCA"
from scater, "seuratPCA"
and "seuratICA"
from Seurat as options of
dimension reduction for method
argument. For detailed
parameter description, please click on the function name to be
redirected to its reference page.
2. Visualization
There are multiple functions that can create scatter plot using
dimensions stored in reducedDims
slot of the SCE
object.
# Make scatter plot without annotation
plotDimRed(sce, useReduction = "PCA")
# Short-cut for reduced dims named as "PCA"
plotPCA(sce)
# Customizing scatter plot with more information from cell metadata (colData)
plotSCEDimReduceColData(sce, colorBy = "cluster", reducedDimName = "PCA")
# Color scatter plot with feature expression
plotSCEDimReduceFeatures(sce, feature = "CD8A", reducedDimName = "PCA")
Besides, SCTK also wraps elbow plot, Jackstraw plot and DimHeatmap methods from Seurat. For usage of these visualization methods, please refer to Seurat Curated Workflow
library(singleCellTK)
sce <- importExampleData("pbmc3k")
sce <- runNormalization(sce, normalizationMethod = "LogNormalize", useAssay = "counts", outAssayName = "logcounts")
sce <- runFeatureSelection(sce, useAssay = "counts", method = "modelGeneVar")
sce <- setTopHVG(sce, method = "modelGeneVar", hvgNumber = 2000, featureSubsetName = "HVG")
# Run
sce <- runDimReduce(sce, method = "seuratPCA", useAssay = "logcounts",
scale = TRUE, useFeatureSubset = "HVG", reducedDimName = "PCA", nComponents = 50)
# Plot

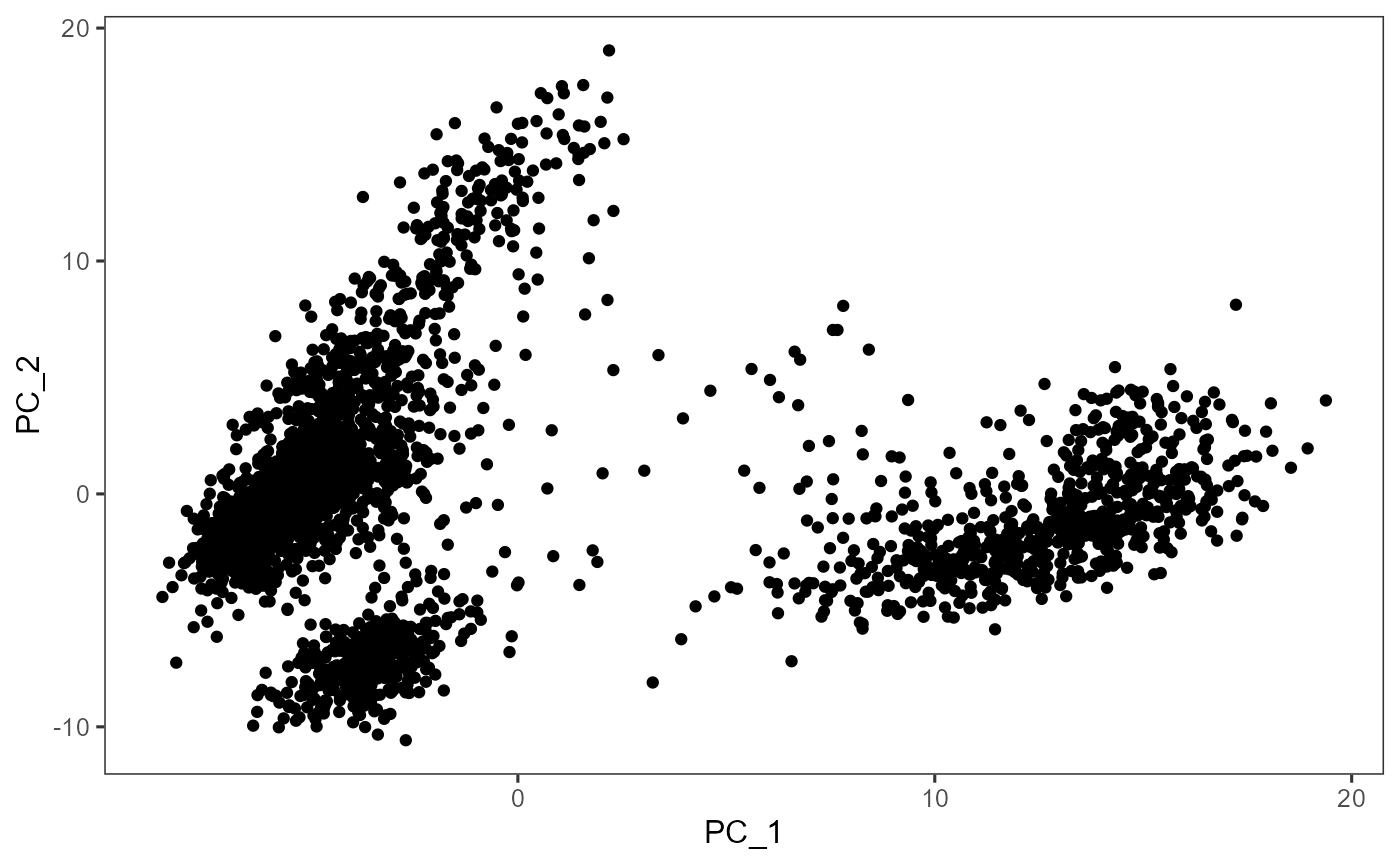

plotDimRed(sce, "PCA")
While the runDimReduce()
wrapper function can be used
for all dimensionality reduction algorithms including PCA and ICA, and
additionally for 2D embeddings like tSNE and UMAP, separate functions
are also available for all of the included methods. The following
functions can be used for specific methods:
Running PCA with Seurat method:
# Recommended to find variable features before running runSeuratPCA
# sce <- runSeuratFindHVG(inSCE = sce, useAssay = "seuratScaledData")
sce <- runSeuratPCA(inSCE = sce, useAssay = "seuratNormData", scale = TRUE, reducedDimName = "seuratPCA")
Running ICA with Seurat method:
# Recommended to find variable features before running runSeuratICA
# sce <- runSeuratFindHVG(inSCE = sce, useAssay = "seuratScaledData")
sce <- runSeuratICA(inSCE = sce, useAssay = "seuratNormData", scale = TRUE, reducedDimName = "seuratICA")
Running PCA with scater method:
# Recommended to find variable features before running scaterPCA
# sce <- runSeuratFindHVG(inSCE = sce, useAssay = "seuratScaledData")
# sce <- setTopHVG(inSCE = sce, hvgNumber = 2000)
sce <- scaterPCA(inSCE = sce, useAssay = "logcounts",
useFeatureSubset = "HVG_vst2000", scale = TRUE,
reducedDimName = "scaterPCA")
Method | 2-Dimensional Component Plot | Elbow Plot | JackStraw Plot | Heatmap Plot |
---|---|---|---|---|
PCA | yes | yes | yes | yes |
ICA | yes | no | no | yes |
