Performing comprehensive quality control (QC) is necessary to remove poor quality cells for downstream analysis of single-cell RNA sequencing (scRNA-seq) data. Within droplet-based scRNA-seq data, droplets containing cells must be differentiated from empty droplets. Therefore, assessment of the data is required, for which various QC algorithms have been developed. In singleCellTK (SCTK), we have written convenience functions for several of these tools. In this guide, we will demonstrate how to use these functions to perform quality control on unfiltered, droplet data. (For definition of droplet data, please refer this documentation.)
The package can be loaded using the library()
command.
SCTK takes in a SingleCellExperiment
object from the SingleCellExperiment
package. We will utilize the 10X PBMC 4K dataset as an example. For the
QC of droplet-based counts data, we will install the dataset from the
10X Genomics website using the BiocFileCache
package.
# Install BiocFileCache if is it not already
if (!requireNamespace("BiocFileCache", quietly = TRUE)) {
if (!requireNamespace("BiocManager", quietly = TRUE)) {
install.packages("BiocManager")
}
BiocManager::install("BiocFileCache")
}
library("BiocFileCache")
bfc <- BiocFileCache::BiocFileCache("raw_data", ask = FALSE)
raw.path <- bfcrpath(bfc, file.path(
"http://cf.10xgenomics.com/samples",
"cell-exp/2.1.0/pbmc4k/pbmc4k_raw_gene_bc_matrices.tar.gz"
))
untar(raw.path, exdir = file.path(tempdir(), "pbmc4k"))
fname <- file.path(tempdir(), "pbmc4k/raw_gene_bc_matrices/GRCh38")
pbmc4k.droplet <- DropletUtils::read10xCounts(fname, col.names = TRUE)
### change the sample column
names(colData(pbmc4k.droplet)) <- c("sample", "Barcode")
colData(pbmc4k.droplet)$sample <- rep("pbmc4k", ncol(colData(pbmc4k.droplet)))
SCTK also supports the importing of single-cell data from the
following platforms: 10X
CellRanger, STARSolo,
BUSTools, SEQC, DropEST, Alevin,
as well as dataset already stored in SingleCellExperiment
object and AnnData
object. To load your own input data, please refer
Function Reference for pre-processing tools
under
Console Analysis
section in Import data into SCTK for detailed
instruction.
All droplet-based QC functions are able to be run under the wrapper
function runDropletQC()
. By default all possible QC
algorithms will be run.
pbmc4k.droplet <- runDropletQC(pbmc4k.droplet)
## Wed Jun 29 19:12:45 2022 ... Running 'perCellQCMetrics'
## Wed Jun 29 19:12:46 2022 ... Running 'emptyDrops'
## Wed Jun 29 19:13:20 2022 ... Running 'barcodeRanks'
If users choose to only run a specific set of algorithms, they can
specify which to run with the algorithms
parameter.
After running QC functions with SCTK, the output will be stored in
the colData
slot of the SingleCellExperiment
object.
## DataFrame with 5 rows and 16 columns
## sample Barcode sum detected
## <character> <character> <numeric> <integer>
## AGGTCATCACCTTGTC-1 pbmc4k AGGTCATCACCTTGTC-1 0 0
## CTCGTCAAGGTAGCCA-1 pbmc4k CTCGTCAAGGTAGCCA-1 4 4
## CATGCCTGTGCAGACA-1 pbmc4k CATGCCTGTGCAGACA-1 0 0
## GAATGAAGTAGCCTCG-1 pbmc4k GAATGAAGTAGCCTCG-1 1 1
## ACATGGTAGTGTCCAT-1 pbmc4k ACATGGTAGTGTCCAT-1 0 0
## percent.top_50 percent.top_100 percent.top_200
## <numeric> <numeric> <numeric>
## AGGTCATCACCTTGTC-1 NaN NaN NaN
## CTCGTCAAGGTAGCCA-1 100 100 100
## CATGCCTGTGCAGACA-1 NaN NaN NaN
## GAATGAAGTAGCCTCG-1 100 100 100
## ACATGGTAGTGTCCAT-1 NaN NaN NaN
## percent.top_500 total dropletUtils_emptyDrops_total
## <numeric> <numeric> <integer>
## AGGTCATCACCTTGTC-1 NaN 0 0
## CTCGTCAAGGTAGCCA-1 100 4 4
## CATGCCTGTGCAGACA-1 NaN 0 0
## GAATGAAGTAGCCTCG-1 100 1 1
## ACATGGTAGTGTCCAT-1 NaN 0 0
## dropletUtils_emptyDrops_logprob
## <numeric>
## AGGTCATCACCTTGTC-1 NA
## CTCGTCAAGGTAGCCA-1 NA
## CATGCCTGTGCAGACA-1 NA
## GAATGAAGTAGCCTCG-1 NA
## ACATGGTAGTGTCCAT-1 NA
## dropletUtils_emptyDrops_pvalue
## <numeric>
## AGGTCATCACCTTGTC-1 NA
## CTCGTCAAGGTAGCCA-1 NA
## CATGCCTGTGCAGACA-1 NA
## GAATGAAGTAGCCTCG-1 NA
## ACATGGTAGTGTCCAT-1 NA
## dropletUtils_emptyDrops_limited dropletUtils_emptyDrops_fdr
## <logical> <numeric>
## AGGTCATCACCTTGTC-1 NA NA
## CTCGTCAAGGTAGCCA-1 NA NA
## CATGCCTGTGCAGACA-1 NA NA
## GAATGAAGTAGCCTCG-1 NA NA
## ACATGGTAGTGTCCAT-1 NA NA
## dropletUtils_BarcodeRank_Knee
## <integer>
## AGGTCATCACCTTGTC-1 0
## CTCGTCAAGGTAGCCA-1 0
## CATGCCTGTGCAGACA-1 0
## GAATGAAGTAGCCTCG-1 0
## ACATGGTAGTGTCCAT-1 0
## dropletUtils_BarcodeRank_Inflection
## <integer>
## AGGTCATCACCTTGTC-1 0
## CTCGTCAAGGTAGCCA-1 0
## CATGCCTGTGCAGACA-1 0
## GAATGAAGTAGCCTCG-1 0
## ACATGGTAGTGTCCAT-1 0
sample | Barcode | sum | detected | percent.top_50 | percent.top_100 | percent.top_200 | percent.top_500 | total | dropletUtils_emptyDrops_total | dropletUtils_emptyDrops_logprob | dropletUtils_emptyDrops_pvalue | dropletUtils_emptyDrops_limited | dropletUtils_emptyDrops_fdr | dropletUtils_BarcodeRank_Knee | dropletUtils_BarcodeRank_Inflection | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AGGTCATCACCTTGTC-1 | pbmc4k | AGGTCATCACCTTGTC-1 | 0 | 0 | NaN | NaN | NaN | NaN | 0 | 0 | NA | NA | NA | NA | 0 | 0 |
CTCGTCAAGGTAGCCA-1 | pbmc4k | CTCGTCAAGGTAGCCA-1 | 4 | 4 | 100 | 100 | 100 | 100 | 4 | 4 | NA | NA | NA | NA | 0 | 0 |
CATGCCTGTGCAGACA-1 | pbmc4k | CATGCCTGTGCAGACA-1 | 0 | 0 | NaN | NaN | NaN | NaN | 0 | 0 | NA | NA | NA | NA | 0 | 0 |
GAATGAAGTAGCCTCG-1 | pbmc4k | GAATGAAGTAGCCTCG-1 | 1 | 1 | 100 | 100 | 100 | 100 | 1 | 1 | NA | NA | NA | NA | 0 | 0 |
ACATGGTAGTGTCCAT-1 | pbmc4k | ACATGGTAGTGTCCAT-1 | 0 | 0 | NaN | NaN | NaN | NaN | 0 | 0 | NA | NA | NA | NA | 0 | 0 |
QC output | Description | Methods | Package/Tool |
---|---|---|---|
sum |
Total counts | runPerCellQC() |
scater |
detected |
Total features | runPerCellQC() |
scater |
percent_top |
% Expression coming from top features | runPerCellQC() |
scater |
subsets_* |
sum, detected, percent_top calculated on specified gene list | runPerCellQC() |
scater |
dropletUtils_emptyDrops_total |
Total counts | runEmptyDrops() |
DropletUtils |
dropletUtils_emptyDrops_logprob |
The log-probability of droplet being empty | runEmptyDrops() |
DropletUtils |
dropletUtils_emptyDrops_pvalue |
Monte Carlo p-value of droplet being empty | runEmptyDrops() |
DropletUtils |
dropletUtils_emptyDrops_limited |
Whether a lower p-value could be obtained by increasing niters | runEmptyDrops() |
DropletUtils |
dropletUtils_emptyDrops_fdr |
p-value of droplet being empty, corrected for false detection rate | runEmptyDrops() |
DropletUtils |
dropletUtils_BarcodeRank_Knee |
Whether total UMI count value is higher than knee point | runBarcodeRankDrops() |
DropletUtils |
dropletUtils_BarcodeRank_Inflection |
Whether total UMI count value is higher than inflection point | runBarcodeRankDrops() |
DropletUtils |
Instead of running all quality control methods on the dataset at once, users may elect to execute QC methods individually. The parameters as well as the outputs to individual QC functions are described in detail as follows:
It is crucial to distinguish the data occurring from real cells and
empty droplets containing ambient RNA. SCTK employs the EmptyDrops
algorithm from the DropletUtils
package to test for empty droplets. The wrapper function
runEmptyDrops()
can be used to separately run the
EmptyDrops algorithm on its own.
lower
is the lower bound of the total UMI count, in
which all barcodes below the lower bound are assumed to be empty
droplets.niters
is the number of iterations the function will
run for the calculation.testAmbient
indicates whether results should be
returned for barcodes that have a total UMI count below what is
specified in lower
.
pbmc4k.droplet <- runEmptyDrops(
inSCE = pbmc4k.droplet,
useAssay = "counts",
lower = 100,
niters = 10000
)
BarcodeRanks
from the DropletUtils
package computes barcode rank statistics and identifies the knee and
inflection points on the total count curve. The knee and inflection
points on the curve represent the difference between empty droplets and
cell-containing droplets with much more RNA. The wrapper function
runBarcodeRankDrops()
can be used to separately run the
BarcodeRanks algorithm on its own.
lower
is the lower bound of the total UMI count, in
which all barcodes below the lower bound are assumed to be empty
droplets.
pbmc4k.droplet <- runBarcodeRankDrops(
inSCE = pbmc4k.droplet,
useAssay = "counts",
fitBounds = NULL, df = 20
)
Upon running runDropletQC()
or any of the individual
droplet QC functions, the QC outputs will need to be plotted. For each
QC method, SCTK provides a specialized plotting function.

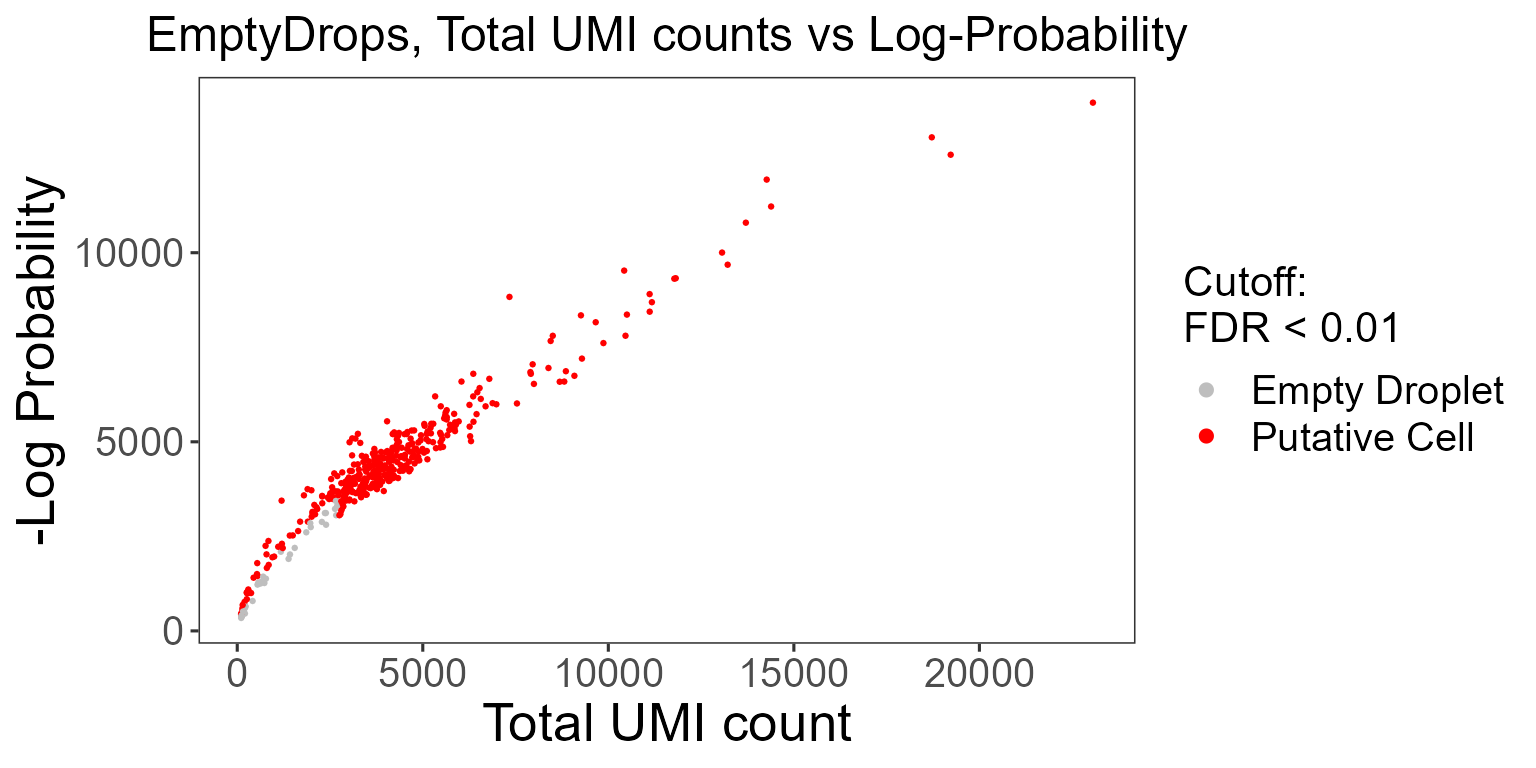

The wrapper function plotEmptyDropsResults()
can be used
to plot the results from the EmptyDrops algorithm. This will visualize
the empty droplets, by plotting the total UMI counts against the log
probability for each barcode.
emptyDropsResults <- plotEmptyDropsResults(
inSCE = pbmc4k.droplet,
axisLabelSize = 20,
sample = NULL,
fdrCutoff = 0.01,
dotSize = 0.5,
defaultTheme = TRUE
)
emptyDropsResults$scatterEmptyDrops
Data points are colored by FDR values, where we see a small portion of the dataset contains barcodes that do not meet the threshold.

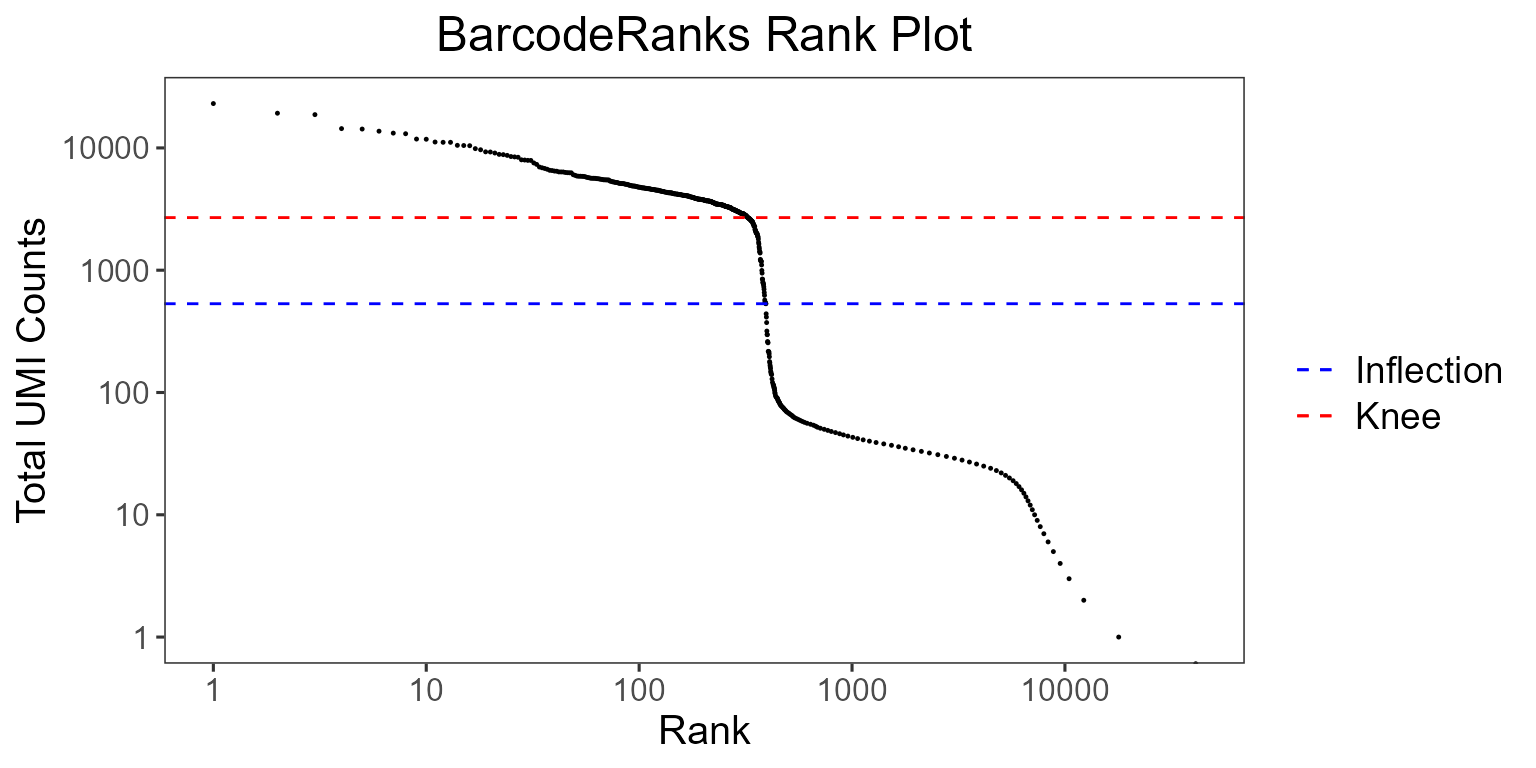

The wrapper function plotBarcodeRankScatter()
can be
used to plot the results from the BarcodeRanks algorithm.
plotBarcodeRankScatter(
inSCE = pbmc4k.droplet,
title = "BarcodeRanks Rank Plot",
legendSize = 14
)
The total UMI count of each barcode is plotted against its rank. We can see a steep dropoff of UMI counts around the inflection point, where we see a presumed separation between cell-containing and empty droplets.
SingleCellExperiment
objects can be subset by its
colData
using subsetSCECols()
. The
colData
parameter takes in a character vector of
expression(s) which will be used to identify a subset of cells using
variables found in the colData
of the
SingleCellExperiment
object. For example, if x
is a numeric vector in colData
, then setting
colData = "x < 5"
will return a
SingleCellExperiment
object where all columns (cells) meet
the condition that x
is less than 5. The index
parameter takes in a numeric vector of indices which should be kept,
while bool
takes in a logical vector of TRUE
or FALSE
which should be of the same length as the number
of columns (cells) in the SingleCellExperiment
object.
Please refer to our Filtering
documentation for detail.
#Before filtering:
dim(pbmc4k.droplet)
## [1] 33694 60000
pbmc4k.droplet <- subsetSCECols(pbmc4k.droplet, colData = 'dropletUtils_BarcodeRank_Inflection == 1')
pbmc4k.droplet <- subsetSCECols(pbmc4k.droplet, colData = '!is.na(pbmc4k.droplet$dropletUtils_emptyDrops_fdr)')
pbmc4k.droplet <- subsetSCECols(pbmc4k.droplet, colData = 'pbmc4k.droplet$dropletUtils_emptyDrops_fdr < 0.01')
#After filtering:
dim(pbmc4k.droplet)
## [1] 33694 371

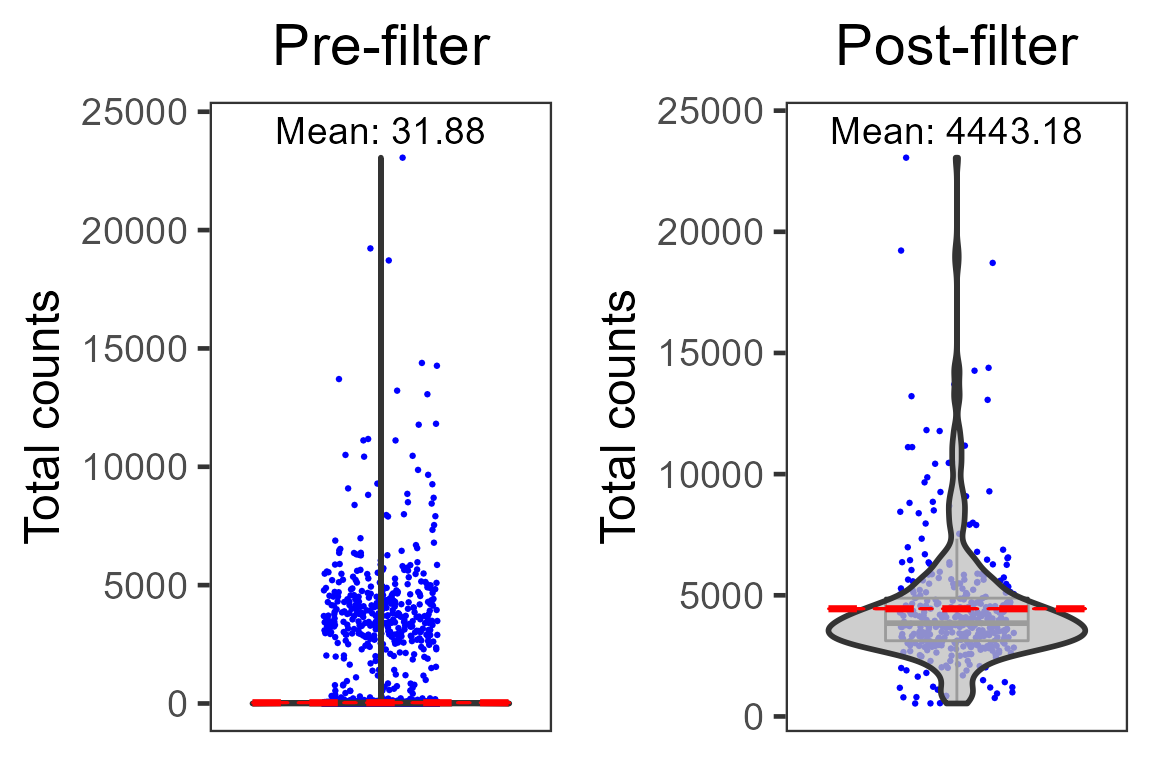

We can compare the average total UMI counts per cell before and after cell filtration:
p1 <- plotSCEViolinColData(pbmc4k.droplet.prefilt, coldata = "sum", summary = "mean", title = "Pre-filter", ylab = "Total counts")
p2 <- plotSCEViolinColData(pbmc4k.droplet, coldata = "sum", summary = "mean", title = "Post-filter", ylab = "Total counts")
plot(cowplot::plot_grid(p1, p2, ncol = 2))
For performing QC on cell-filtered count matrix with SCTK, please refer to our Cell QC documentation.
## R version 4.2.0 (2022-04-22 ucrt)
## Platform: x86_64-w64-mingw32/x64 (64-bit)
## Running under: Windows 10 x64 (build 19043)
##
## Matrix products: default
##
## locale:
## [1] LC_COLLATE=Chinese (Simplified)_China.utf8
## [2] LC_CTYPE=Chinese (Simplified)_China.utf8
## [3] LC_MONETARY=Chinese (Simplified)_China.utf8
## [4] LC_NUMERIC=C
## [5] LC_TIME=Chinese (Simplified)_China.utf8
##
## attached base packages:
## [1] stats4 stats graphics grDevices utils datasets methods
## [8] base
##
## other attached packages:
## [1] BiocFileCache_2.4.0 dbplyr_2.2.0
## [3] dplyr_1.0.9 singleCellTK_2.7.1
## [5] DelayedArray_0.22.0 Matrix_1.4-1
## [7] SingleCellExperiment_1.18.0 SummarizedExperiment_1.26.1
## [9] Biobase_2.56.0 GenomicRanges_1.48.0
## [11] GenomeInfoDb_1.32.2 IRanges_2.30.0
## [13] S4Vectors_0.34.0 BiocGenerics_0.42.0
## [15] MatrixGenerics_1.8.0 matrixStats_0.62.0
##
## loaded via a namespace (and not attached):
## [1] ggbeeswarm_0.6.0 colorspace_2.0-3
## [3] ellipsis_0.3.2 rprojroot_2.0.3
## [5] GSVAdata_1.32.0 scuttle_1.6.2
## [7] XVector_0.36.0 BiocNeighbors_1.14.0
## [9] fs_1.5.2 rstudioapi_0.13
## [11] farver_2.1.0 ggrepel_0.9.1
## [13] bit64_4.0.5 fansi_1.0.3
## [15] xml2_1.3.3 codetools_0.2-18
## [17] R.methodsS3_1.8.2 sparseMatrixStats_1.8.0
## [19] cachem_1.0.6 knitr_1.39
## [21] scater_1.24.0 jsonlite_1.8.0
## [23] png_0.1-7 R.oo_1.25.0
## [25] HDF5Array_1.24.1 compiler_4.2.0
## [27] httr_1.4.3 dqrng_0.3.0
## [29] assertthat_0.2.1 fastmap_1.1.0
## [31] limma_3.52.2 cli_3.3.0
## [33] BiocSingular_1.12.0 htmltools_0.5.2
## [35] tools_4.2.0 rsvd_1.0.5
## [37] gtable_0.3.0 glue_1.6.2
## [39] GenomeInfoDbData_1.2.8 rappdirs_0.3.3
## [41] Rcpp_1.0.8.3 jquerylib_0.1.4
## [43] pkgdown_2.0.5 vctrs_0.4.1
## [45] rhdf5filters_1.8.0 svglite_2.1.0
## [47] DelayedMatrixStats_1.18.0 xfun_0.31
## [49] stringr_1.4.0 rvest_1.0.2
## [51] beachmat_2.12.0 lifecycle_1.0.1
## [53] irlba_2.3.5 gtools_3.9.2.2
## [55] edgeR_3.38.1 zlibbioc_1.42.0
## [57] scales_1.2.0 ragg_1.2.2
## [59] parallel_4.2.0 rhdf5_2.40.0
## [61] yaml_2.3.5 curl_4.3.2
## [63] gridExtra_2.3 memoise_2.0.1
## [65] reticulate_1.25 ggplot2_3.3.6
## [67] sass_0.4.1 stringi_1.7.6
## [69] RSQLite_2.2.14 highr_0.9
## [71] desc_1.4.1 ScaledMatrix_1.4.0
## [73] filelock_1.0.2 BiocParallel_1.30.3
## [75] rlang_1.0.2 pkgconfig_2.0.3
## [77] systemfonts_1.0.4 bitops_1.0-7
## [79] evaluate_0.15 lattice_0.20-45
## [81] purrr_0.3.4 Rhdf5lib_1.18.2
## [83] labeling_0.4.2 cowplot_1.1.1
## [85] bit_4.0.4 tidyselect_1.1.2
## [87] magrittr_2.0.3 R6_2.5.1
## [89] generics_0.1.2 fishpond_2.2.0
## [91] DBI_1.1.3 withr_2.5.0
## [93] pillar_1.7.0 svMisc_1.2.3
## [95] RCurl_1.98-1.7 tibble_3.1.7
## [97] crayon_1.5.1 DropletUtils_1.16.0
## [99] utf8_1.2.2 rmarkdown_2.14
## [101] viridis_0.6.2 locfit_1.5-9.5
## [103] grid_4.2.0 blob_1.2.3
## [105] webshot_0.5.3 digest_0.6.29
## [107] R.utils_2.11.0 textshaping_0.3.6
## [109] munsell_0.5.0 kableExtra_1.3.4
## [111] viridisLite_0.4.0 beeswarm_0.4.0
## [113] vipor_0.4.5 bslib_0.3.1
